| Outside Dimensions in inches | Inside Dimensions in inches | Catalogue # |
|---|---|---|
| 4 x 4 x 3 | 3 3/4 x 3 3/4 x 2 3/4 | SHLD-PNL-443 |
| 6 x 6 x 3 | 5 3/4 x 5 3/4 x 2 3/4 | SHLD-PNL-663 |
Suggested Specifications
- Cover shall be a single piece open face unit.
- Cover shall be mounted by the use of of mounting screws to the panel face or high tack double sided tape.
- Cover shall be constructed of heavy duty, clear polycarbonate plastic.
- Cover shall be designed so as to allow installation without interruption of service in the device to be protected.
- Cover shall form a barrier to weather and dripping liquids when installed.
- Cover shall be a Shield Protective Cover manufactured by Crusader Industries Ltd. and shall be catalogue # SHLD-PNL- -QA.

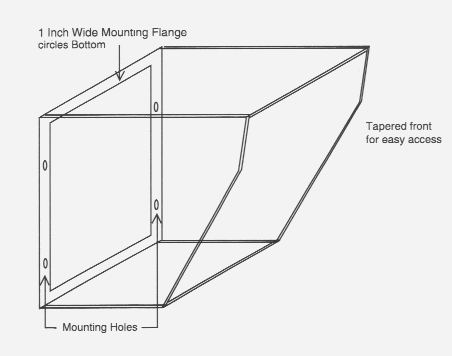

This drawing represents a typical panel open face "quick access"
cover. Mounting may be accomplished by inserting bolts thru the pre-drilled holes in
the flange, or This cover can be glued into place using the supplied high tack
double sided tape.The dimensions on this unit is 4 inches square. The top depth is 3 inches and the bottom depth is 2 inches.
Special Built Covers are available:
*** When Measuring the device to be protected allow a minimum of 1 inch on all sides. It is advisable to allow a minimum of 2 inches for the top depth and 1 inch for the bottom depth. This is because the front opening is tapered to allow for easier access.
Example:
You wish to protect an emergency shut down button. The button is round with a 1 1/2 inch diameter. It sits at a height of 2 inches above the panel face.
Your minimum requirements would be as follows: Width = 2 3/4 inches
Height = 2 3/4 inches
Top Depth = 4 inches
Bottom Depth = 3 inches
Note: Special built covers will not be accepted for return.
Options:
Covers can be colour coded. For example, insert prefix "R-" in the catalogue # (ie. R-SHLD-...) for red covers.
